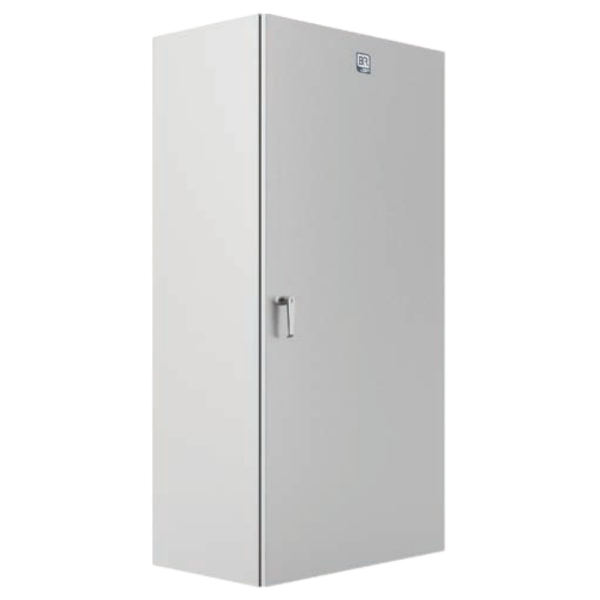

IP/S ENCLOSURE

Applications
Suitable for a wide variety of applications in severe environmental conditions. Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features
IP66 protection rating – more info on IP ratings
C rail mountings for equipment
Gland plate fitted internally or externally on units 400mm or above enclosures.
Vertical body and door rails
3 point locking on models of 600mm high and above
Lockable L handle on enclosures 1600mm high and above (7mm square key turnbuckle lock on others)
Mounting pan is optional extra

Construction
1.2/1.5mm thick 316 stainless steel
1.5mm 316 stainless steel gland plate (brass also available as an option)
Stainless steel hinges and hinge pins for easy door opening
Concealed removable hinging
Polyurethane gasket (foamed in place)
ASSDA approved N4 surface finish

Part
IP09051/S – 300 x 200 x 175
IP13091/S – 400 x 300 x 175
IP13132/S – 400 x 400 x 270
IP21132/S – 600 x 400 x 270
IP13212/S – 400 x 600 x 270
IP21212/S – 600 x 600 x 270
IP29212/S – 800 x 600 x 270
IP37212/S – 1000 x 600 x 270
IP45212/S – 1200 x 600 x 270
IP21292/S – 600 x 800 x 270
IP13214/S – 400 x 600 x 400
IP21214/S – 600 x 600 x 400
IP29214/S – 800 x 600 x 400
IP45214/S – 1200 x 600 x 400
IP61214/S – 1600 x 600 x 400
IP69214/S – 1800 x 600 x 400
IP77214/S – 2000 x 600 x 400
IP25254/S – 700 x 700 x 400
IP37254/S – 1000 x 700 x 400
IP21294/S – 600 x 800 x 400
IP29294/S – 800 x 800 x 400
IP37294/S – 1000 x 800 x 400
IP45294/S – 1200 x 800 x 400
IP61294/S – 1600 x 800 x 400
IP69294/S – 1800 x 800 x 400
IP77294/S – 2000 x 800 x 400
IP21295/S – 600 x 800 x 500
IP29215/S – 800 x 600 x 500
IP45215/S – 1200 x 600 x 500
IP61215/S – 1600 x 600 x 500
IP69215/S – 1800 x 600 x 500
IP77215/S – 2000 x 600 x 500
IP45295/S – 1200 x 800 x 500
IP61295/S – 1600 x 800 x 500
IP69295/S – 1800 x 800 x 500
IP77295/S – 2000 x 800 x 500
IP29216/S – 800 x 600 x 600
IP45216/S – 1200 x 600 x 600
IP61216/S – 1600 x 600 x 600
IP77216/S – 2000 x 600 x 600
IP77296/S – 2000 x 800 x 600
