Call for price

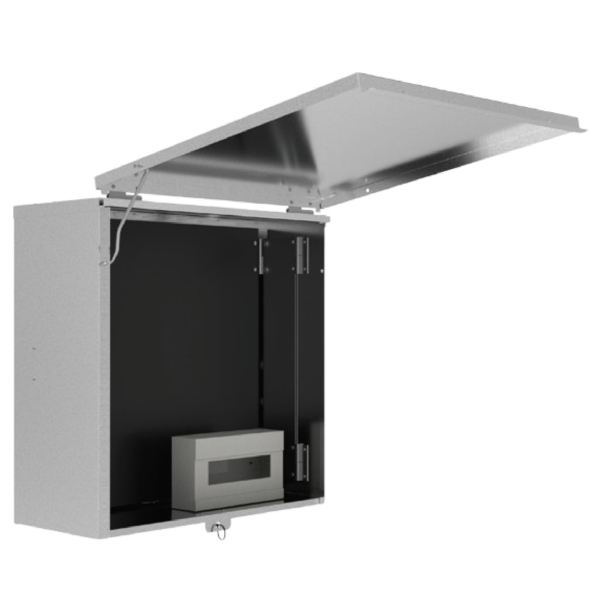

NSW/BP/GD10
An IP23 residential metering enclosure suitable for domestic and light commercial installations in New South Wales applications.
Applications
Complying with the NSW supply authority rules and regulations, the NSW series is designed for both single and multi-phase installations.
Features
Suitable for domestic and light commercial installations
Provides versatility with a large range of products and accessories
Entry level range of enclosures
Top hinged with panel
DIN panel cutout
Earth and neutral links NOT included
Construction
Manufactured from 1.0mm or 1.2mm galvanised steel to Z275
Part
NSW/U/13 – 600 x 600 x 330 (Panel NOT included)
NSW/DIN – 18 pole 600 x 600 x 270 (c/w Moulded white bramite)
NSW/BP/GD10 – 12 pole 600 x 600 x 270 (c/w Plain black)
NSW/BD/GD10 – 12 pole 600 x 600 x 270 (c/w Pre-drilled black panel 5 meters)
NSW/BDE/GD10 – 12 pole 600 x 600 x 270 (c/w Pre-drilled black panel to Ausgrid 3 meters)
